The HVX Pressure to Latch Open Valve with Manual Open/Stop Lever uses “fail safe” actuation and is designed to be opened using the manual open/stop lever. The manual start/stop lever is used to hold open the valve until the engine is running there is oil pressure in the control system. When oil pressure in the valve control system drops below 20 psi (1.2 bar) for any reason such as the detection of an engine overspeed condition, the valve or will close.
The HVX Pressure to Latch Open Valve can be used with an automatic or manual system. Refer to the System Selection Guide for more information.
Diesel Engine Shutdown System Accessories
The HVX Valves are used as part of Automatic or Manual Systems. Some of the major components for the systems are shown below. Refer to the System Selection Guide for more information on systems and accessories.
Valve Installation Accessories
There are accessories and kits available to help simplify installation of the SVX Valves. Hose adaptors (shown installed on the valve) are available in a wide range of sizes to match the requirement for engine air intake lines. Installation kits are also available for a wide variety of hose sizes.
Installation Kits
● HAX Butterfly Valve
● Hose Adaptors
Speed Switches

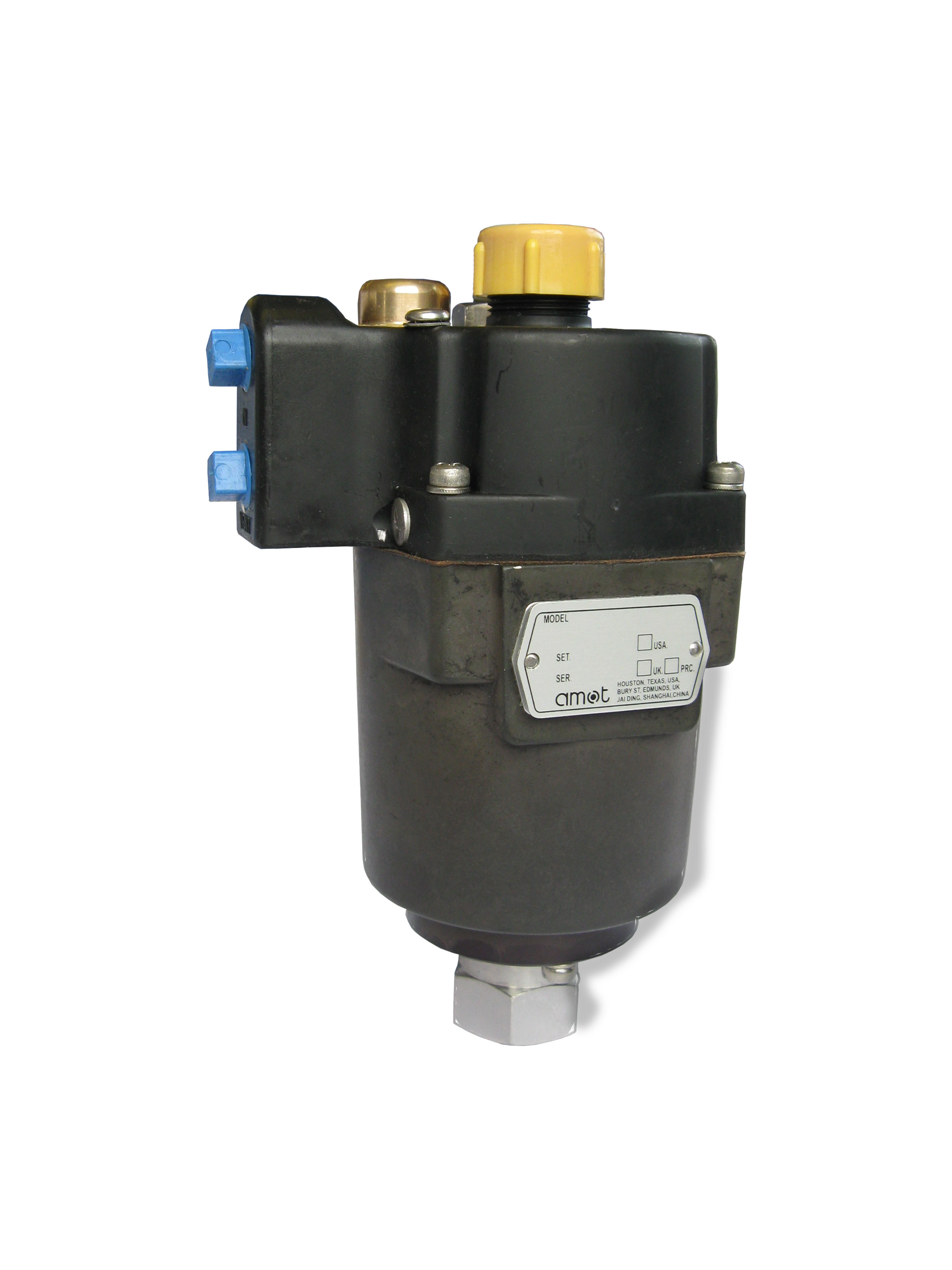

4110 Hydro-Mechanical Overspeed Sensing Valve
RGR RevGuard Speed Switch
CSX-300 Control Unit
Speed Sensors
● 4031 Magnetic Pickup
● 11408X Magnetic Pickup
Actuation Kits
Actuation kits contain hardware required to properly install and integrate the specified shutdown system into the diesel engine application. The kits, specific for each type of system and application, can include items such as:
.jpg)
● Voltage control module
● Relays
● Circuit breaker
● 3-Way Solenoid Valve
● Toggle switch
